For sampling and small production
Flexible modular construction
Stand-alone or integrated
Download SPD Brochure
Send download link to:

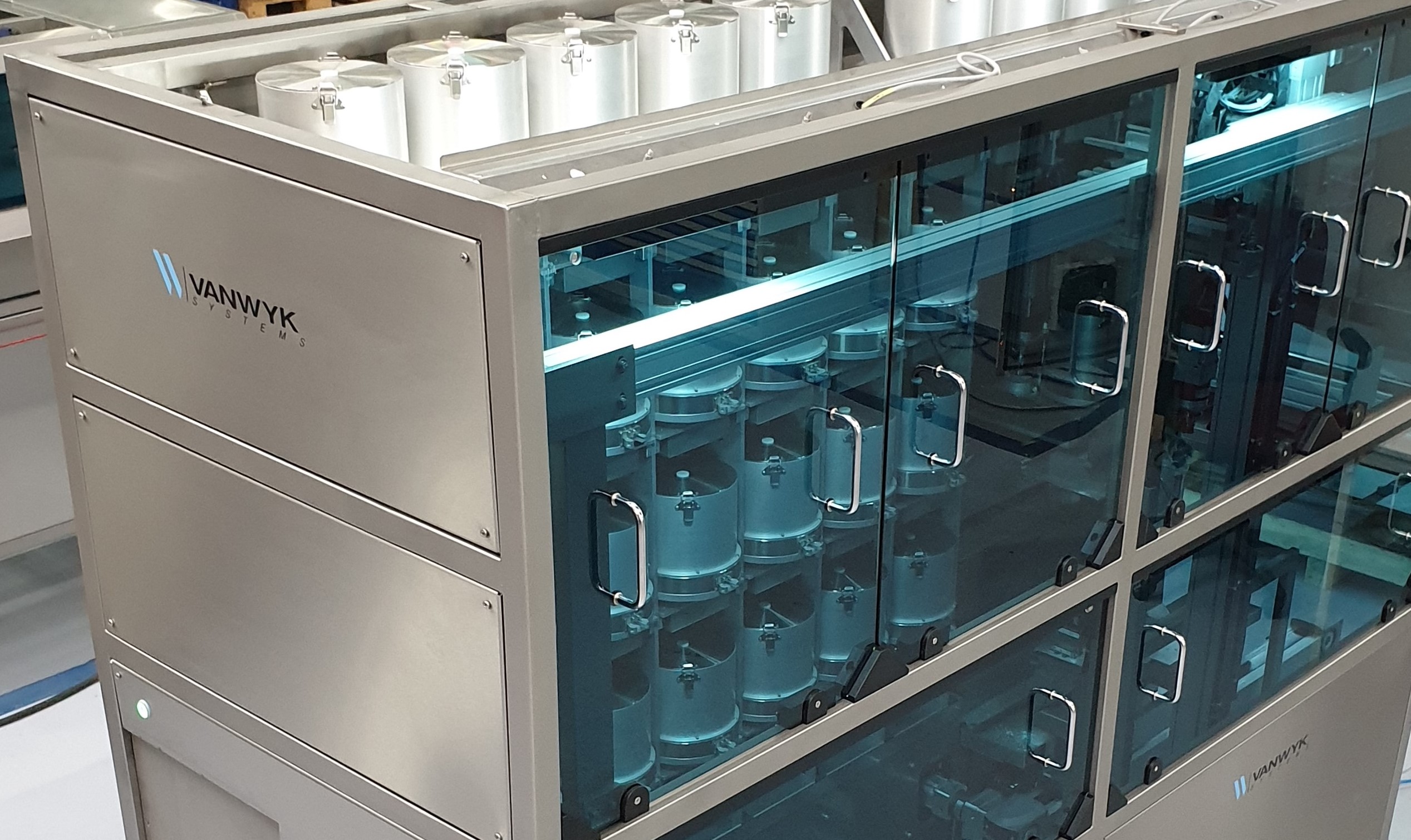

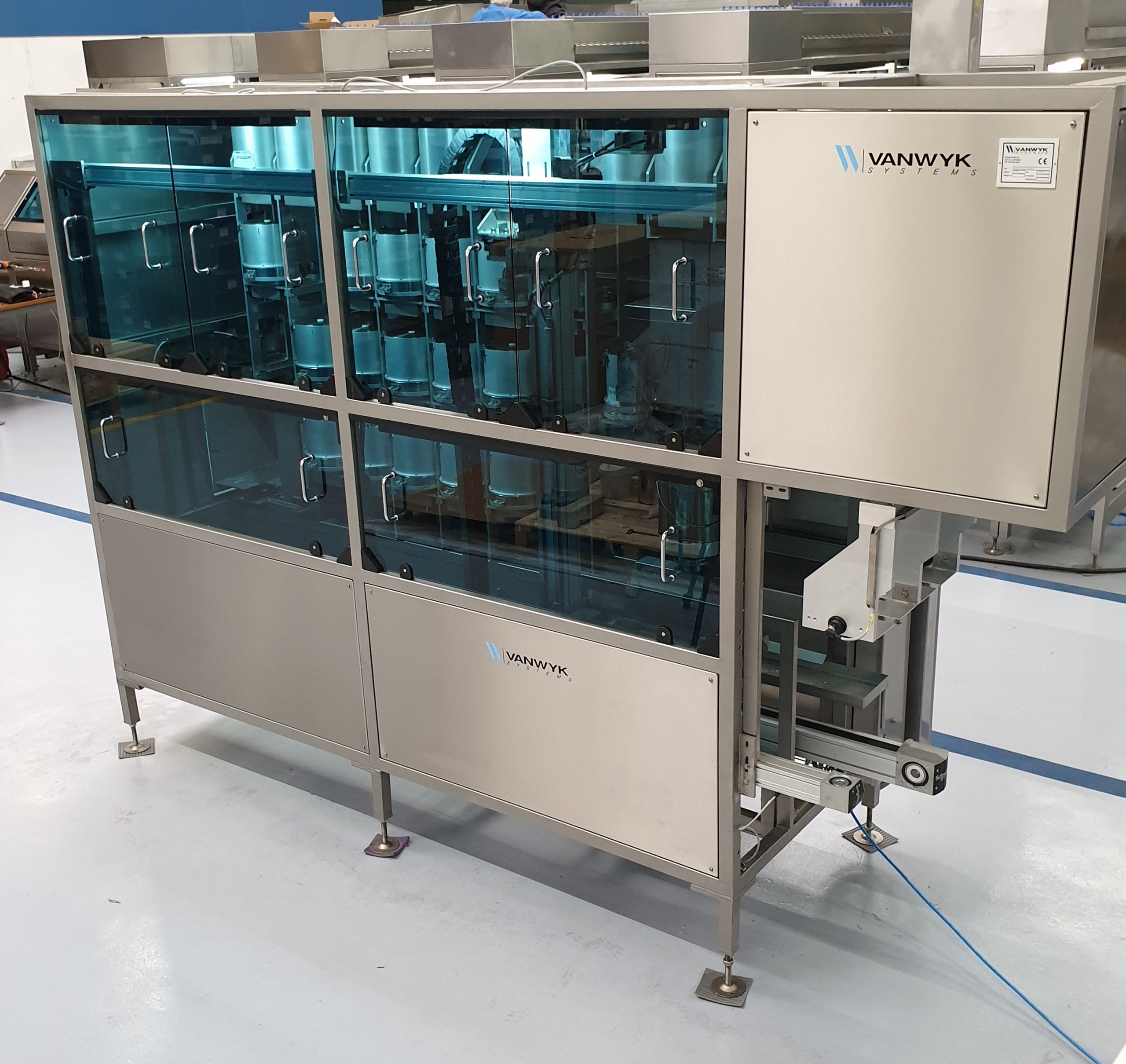

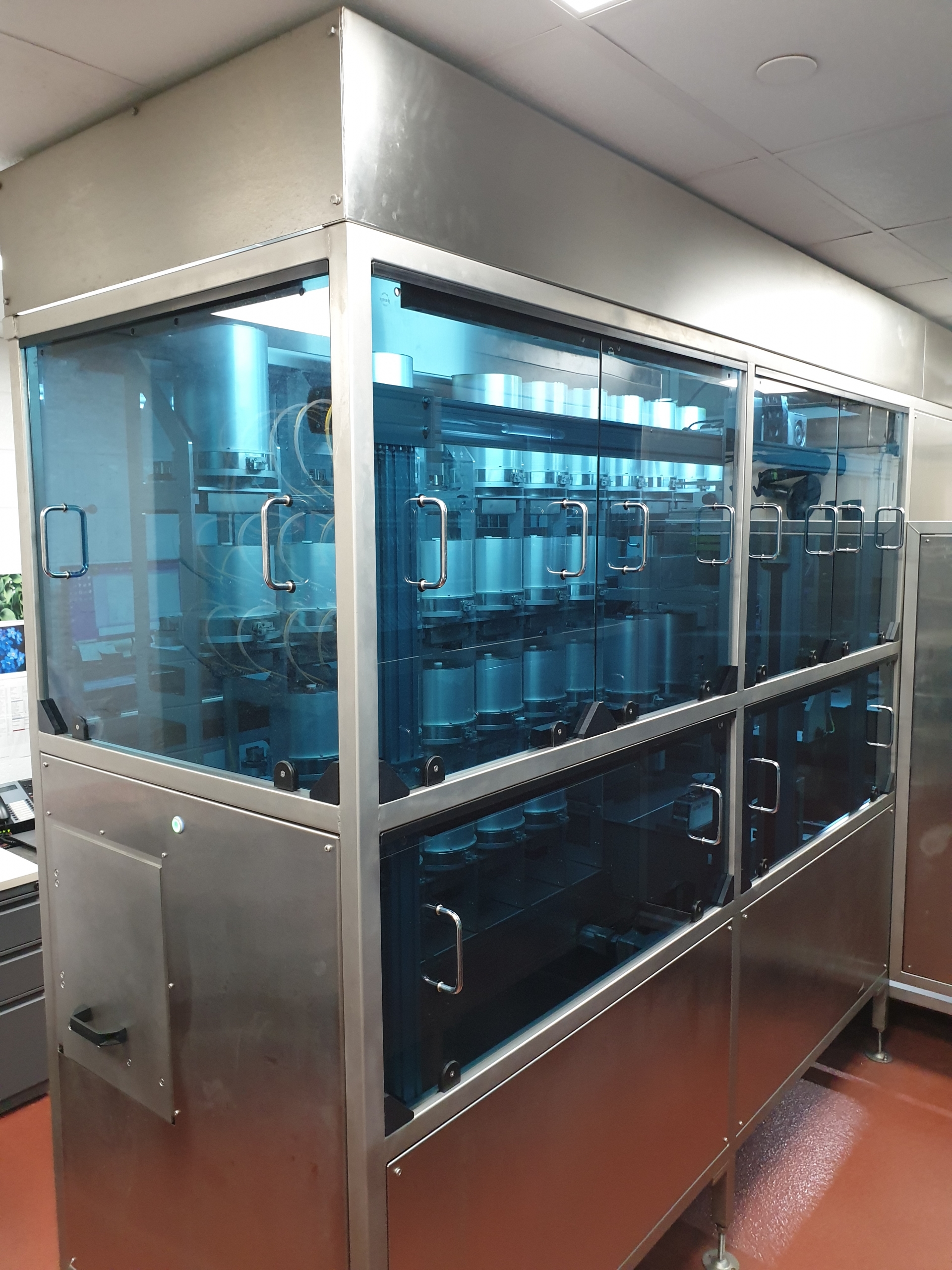

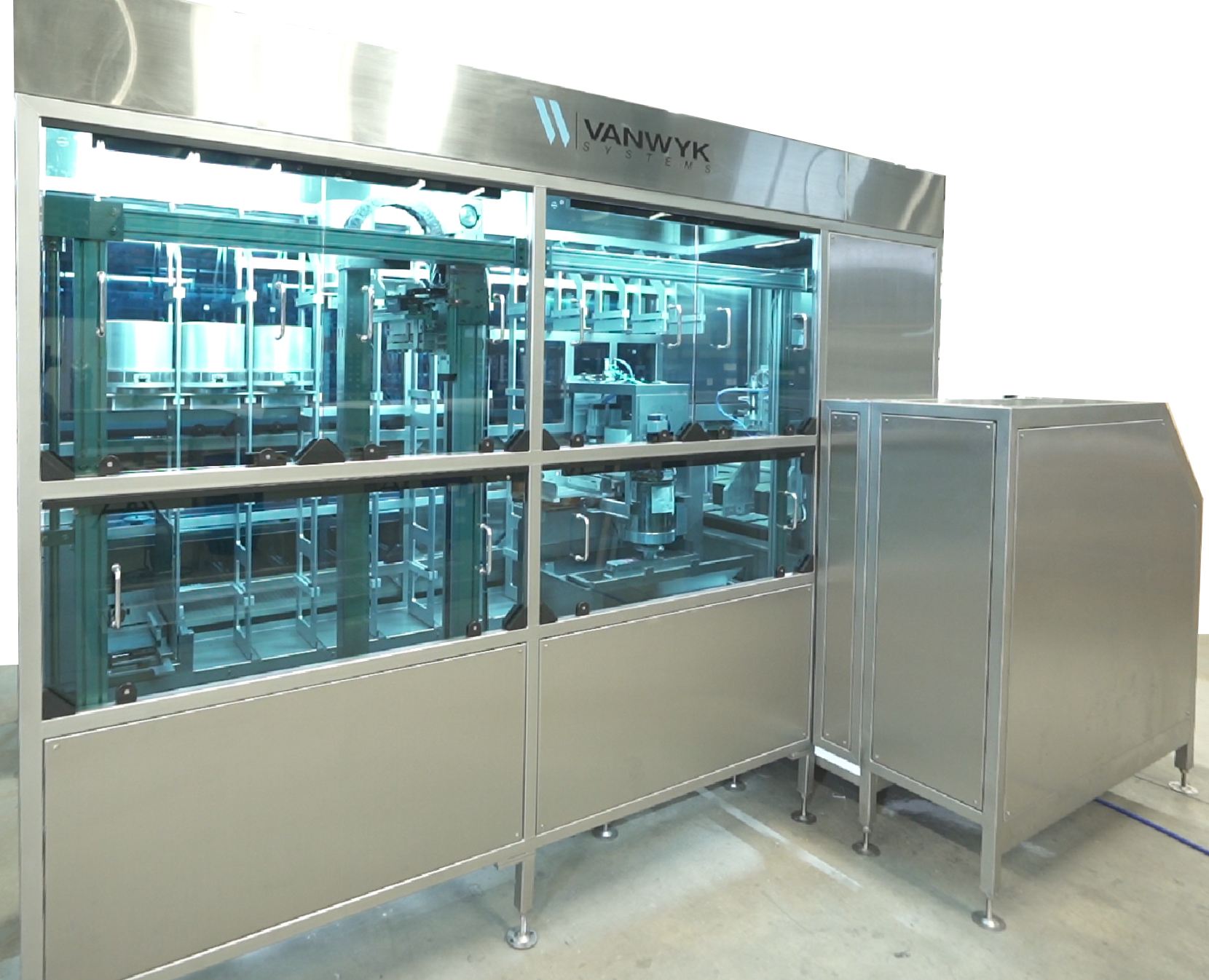

The Sample Powder Dispense Unit is a compact, self-contained dispensing system for dispensing powders and crystals into samples or small batches. It uses patented technology developed by Vanwyk Systems.
It can be used stand-alone or in combination with other liquid/powder modules of the High Capacity Sampling Dispenser (HCSD), making use of the transport system of the HCSD.
Features
Options
Technique

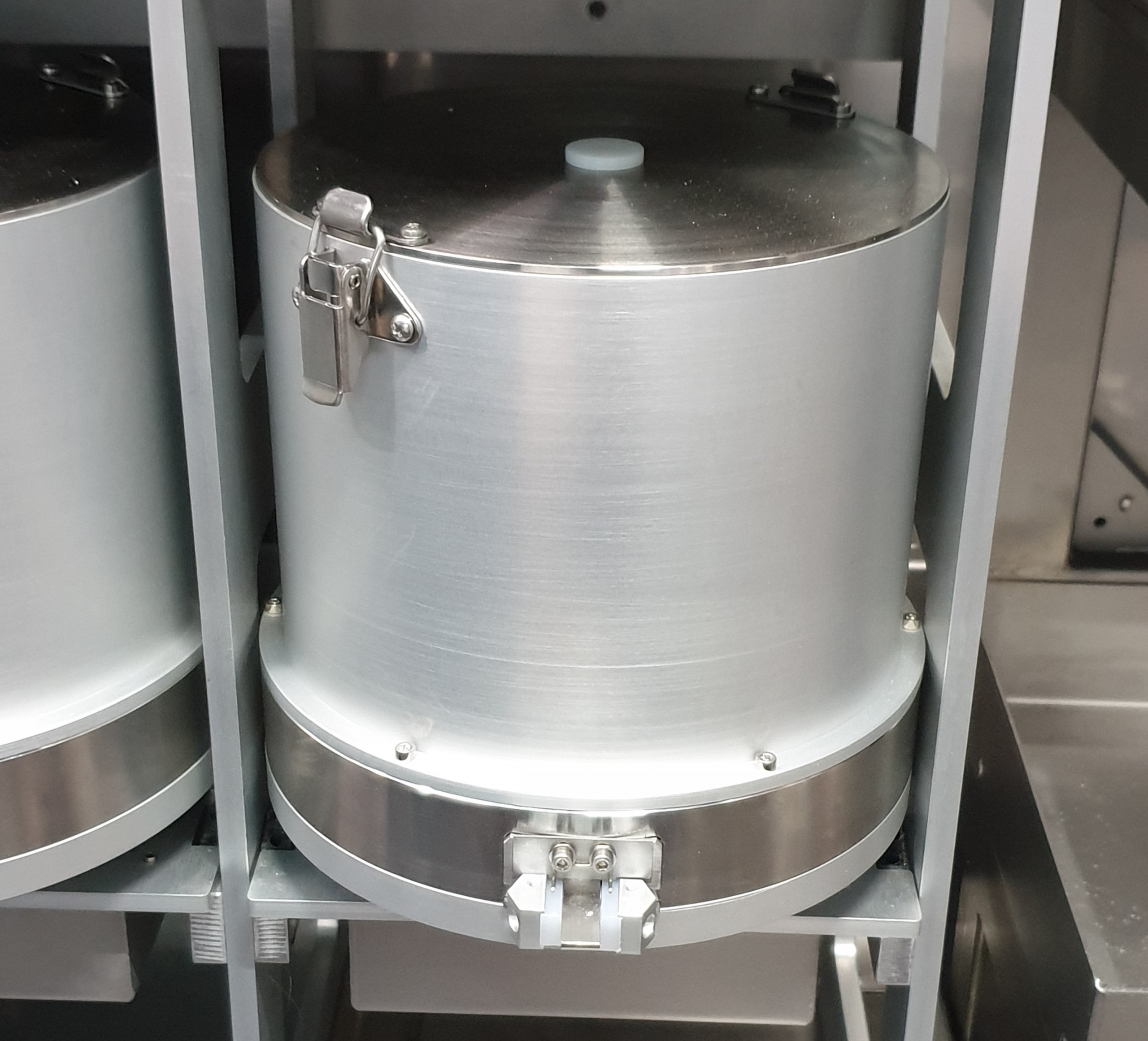

The unit dispenses from a silo onto a high precision digital weighing scale using patented technology developed inhouse. The silo’s are stored in a vertical storage rack inside the module. A pick and place unit will either bring the silo to the dispensing or filling position.
Versatile
The unit is designed to dispense powders/crystals that flow reasonably well and compound samples in a range of 20 grams to 3,5 kg (advisory max 250 grams/dispense).
Safe and Clean
Dispensing takes place in an enclosed environment. If the enclosure is opened, dispensing stops immediately.
Specifications
| No. Silos: | Max. 31 for a small module and 62 for a large module |
| Material: | AISI 316 |
| Dipensing speed silos (3 / 5 L): | 30-60 g/min |
| Capacity | 40-60 dispenses/hour @ 10g avg |
| Accuracy | 0.005 g. |
| Storagecontainers | Tanks, drums and bottles under nitrogen pressure |
