Dispense Cluster

Flavours and Fragrances

Fast and accurate dispense

Excellent reproducibility

High capacity

Safe and clean environment

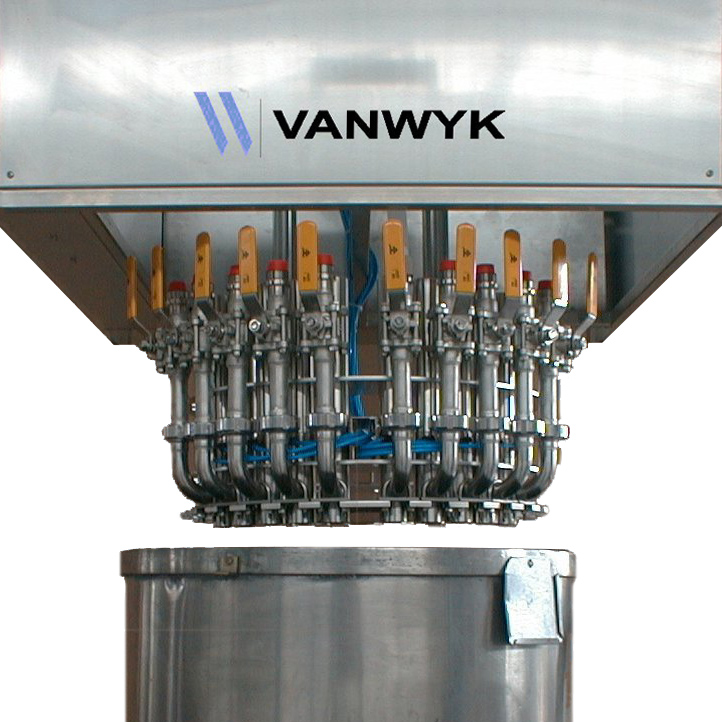

Cluster Dispenser

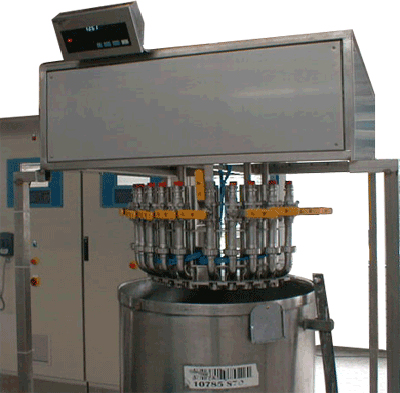

Cluster Dispenser

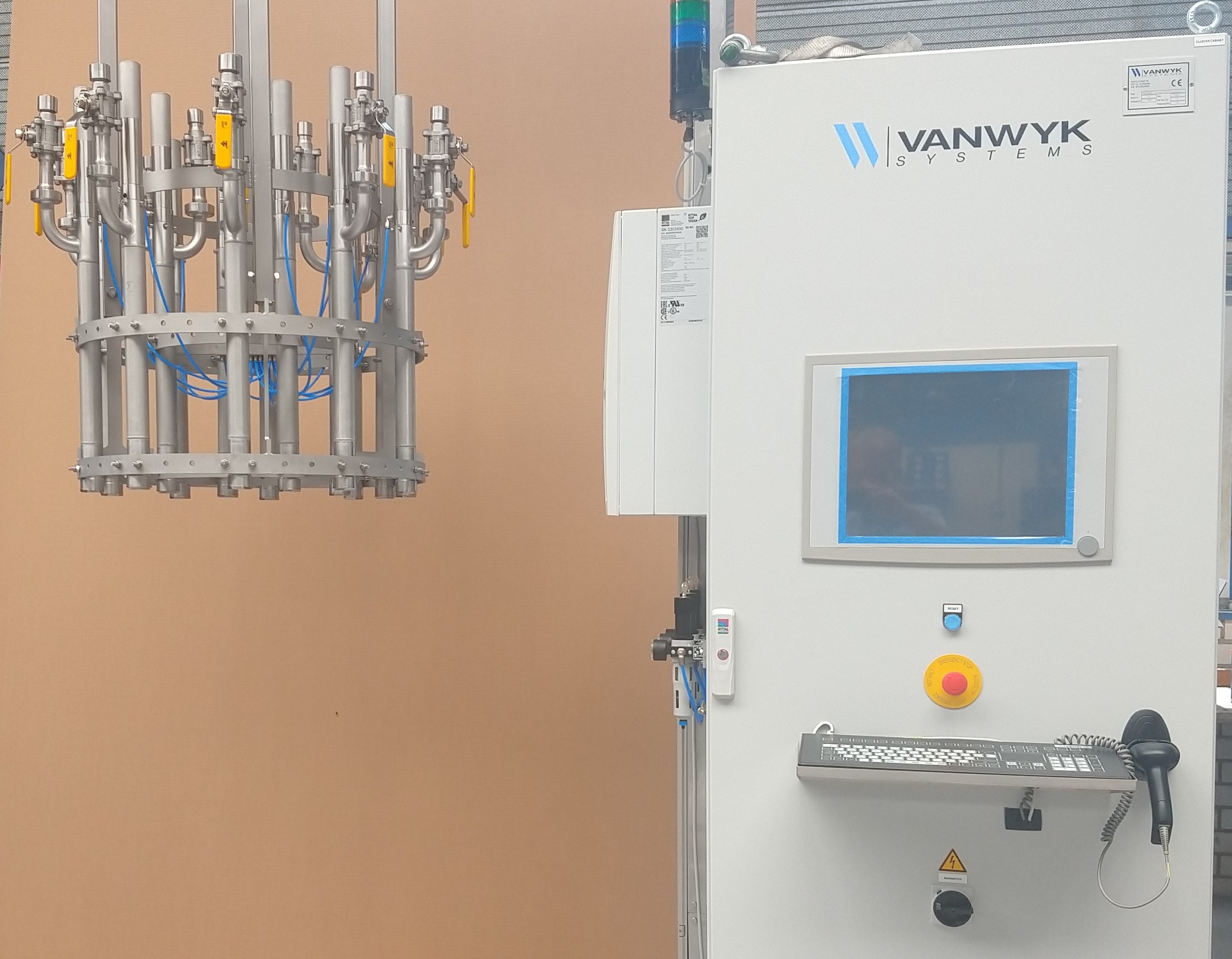

Cluster with panel and scale-01

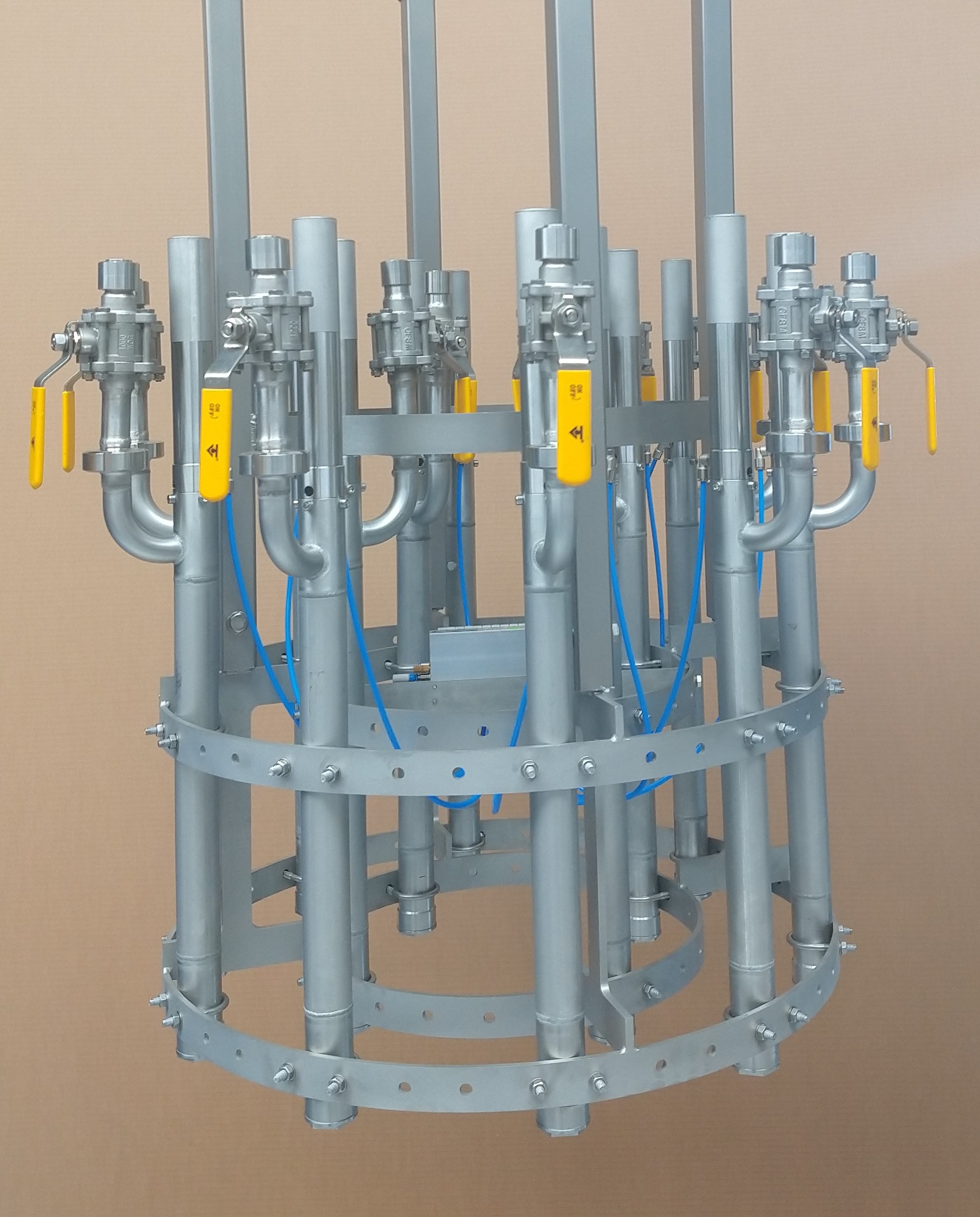

Cluster2

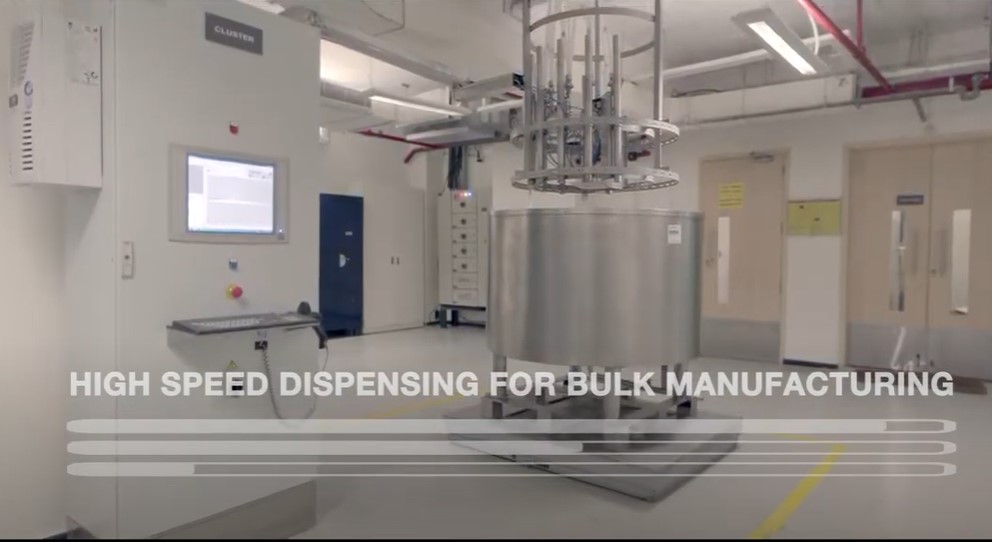

Cluster-02
Cluster Dispenser Cluster Dispenser Cluster with panel and scale-01 Cluster2 Cluster-02

Download Cluster brochure

Download Brochure

Send download link to:

The Dispense Cluster is a system for dispensing large amounts with a limited number of valves.

The high capacity dispense valves are mounted in a circle above a scale that is mostly built into the floor.

Features

  • 2-32 high capacity dispense valves
  • Valve are mounted above a scale
  • Single or multi-circle design
  • Multiple valve sizes available
  • Easy to operate and maintain

Options

  • Software controlled recombination
  • Ventilation of inner funnel
  • valveheating or -cooling
  • Dispense containers

Technique

The Cluster is built in two designs: as multi-circle with a high valve density (many valves in a small surface) and as single circle when it concerns low numbers of valves

Performance

The Cluster can be equipped with 18, 25 and 35mm valves. This allows for dispensing speeds from 20 l/min for the small valves to >50 l/min for the larger valves.

Reliable

The combination of stainless steel valves and stainless steel pipes or PTFE tubing ensures a trouble-free operation.

Specifications

Number of valvesUp to 32
Dispense valve typePneumatically controlled, dual opening
Dispense valve sizesDN18 with opening 18mm / 2mm
DN25 with opening 25mm / 4mm
DN35 with opening 35mm / 4mm
Scale range300 / 600 / 1500 kg
Batch size250 / 500 / 1250 kg
Accuracy3 gram, depending on scale type
Dispensing speedMax > 50 l/min, depending on valve-size
Protection classesNon-Ex and Ex-Proof
