Volumetric Dispense Unit

Textile Dyeing

Small footprint

Excellent reproducibility

Automatic transport

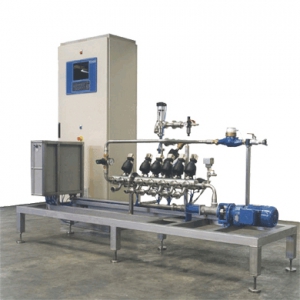

Volumetric Dispense Unit

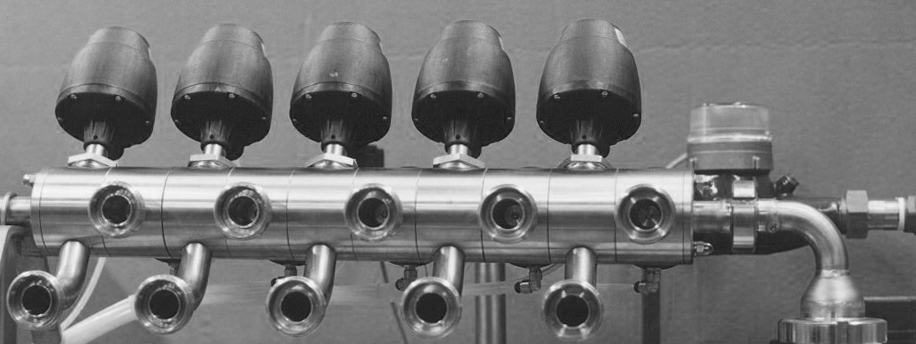

Header VDU
Volumetric Dispense Unit Header VDU

The Volumetric Dispense Unit (VDU) has been designed to volumetrically dispense chemicals for dyeing and finishing applications.

The VDU is ideal for large batches that require a fast preparation such as thickeners and batches for pre-treatment, dyeing and/or finishing.

Features

  • Rinsing is part of the recipe
  • No useless draining of batches because of preparation errors.
  • No over-production: additional amounts can be prepared quickly and reproducible

Technique

The combination of constant flow, fast-switching valves and accurate flowmeters results in a highly accurate and very fast dispense.

Versatile

Ready batches will be pumped directly to the finishing machine upon request by its operator. This system may use Vanwyk’s special 3-way valves.

Safe and clean

Safe and clean handling of all liquid chemicals

Specifications

TypeVDU-10VDU-40
Capacity10 liter/min40 liter/min
Accuracy0.02 liter or 0.3 % of required volume0.1 liter or 0.3 % of required volume
Viscosity300 cP (special version for higher viscosities available) 300 cP (special version for higher viscosities available)
Pump typeself-priming displacement pump with mechanical seal (0.55 kW) self-priming displacement pump with mechanical seal (0.75 kW)
