Safe and clean environment

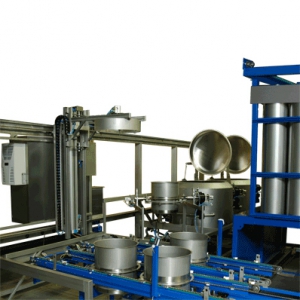

The Automatic Powder Dissolver (APD2) is a high performance, flexible unit for rapid dissolving of chemicals and dyestuffs.
Equipped with a handling robot it perfectly complements the Automatic Powder Dispenser and allows for a fully automatic preparation of product batches.
Powder-filled containers are automatically transported into the dissolving tank. Using a user-defined process description the powder-filled pail is tilted slowly to strew the powder into the dissolving tank and is cleaned afterwards by spraying nozzles.
Each dissolving tank can be filled with a mix of hot and cold water to reach the required temperature and volume. The pneumatically operated cover can open and close automatically.
Safe and Clean
The dissolving takes place inside the closed tank, avoiding possible dust or product loss. No fumes or steam can escape the tank, resulting in a safe and clean working area. The cover is only opened after the batch has been transported and the dissolving tank and powder pails are clean.
|Tank size||300 liter or 500 liter|
|Batch size||40 kg – 500 kg|
|Dissolving speed||12 – 16 batches/hour (depending on the quantity and the required dissolving time of the dyestuffs)|
