Centering Dispense Cluster
Centering Dispense Cluster Header-Cluster Header-CDC

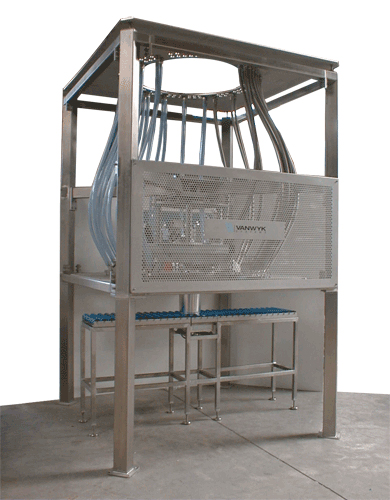

The Centering Dispense cluster (CDC) has been designed as a large batch dispensing system for direct shipping to customers, or in-can filling of smaller containers and even sampling.

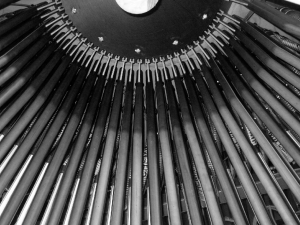

The Centering Dispense Cluster is the ideal solution for applications where flexibility regarding batch size is required. It is a wide range dispensing system for up to 68 components to be dispensed in small and large quantities. It consists of a circle of high speed dispense valves mounted over a (floor) scale. The valve to dispense is moved to the centre, allowing even very small pails to be filled.

The design combines high accuracy with high speed dispensing. The valves are opened using stepper motor technology, allowing optimal flow control.


  • Easy to operate
  • Low and easy maintenance
  • Self-learning Camelot dispensing software


  • Atex zone 1 compliant
  • Lifting tables for various container sizes

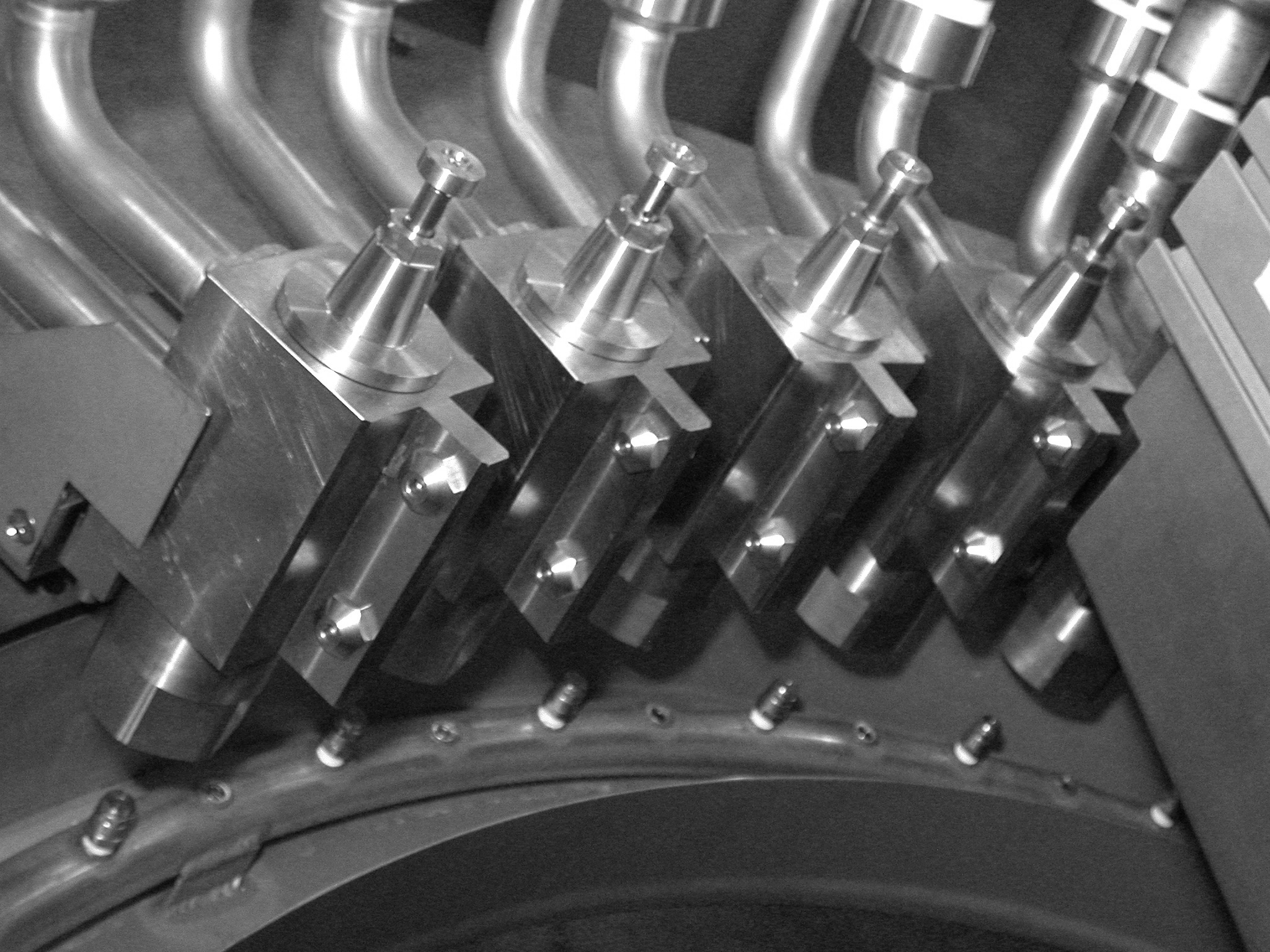

The dispense valves are positioned above the center of the dispense container and opened by an electro-pneumatic valve actuator.


Because the valve always moves to the center, various container diameters can be used.


By stacking scales on top of each other, not only the range but also the accuracy can be significantly improved.


Number of valves8 to 68
Accuracy5-20 g.
Capacity3000 kg
