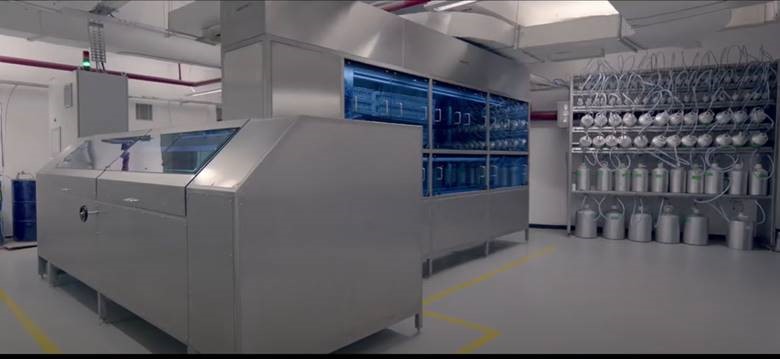

HCSD with storage

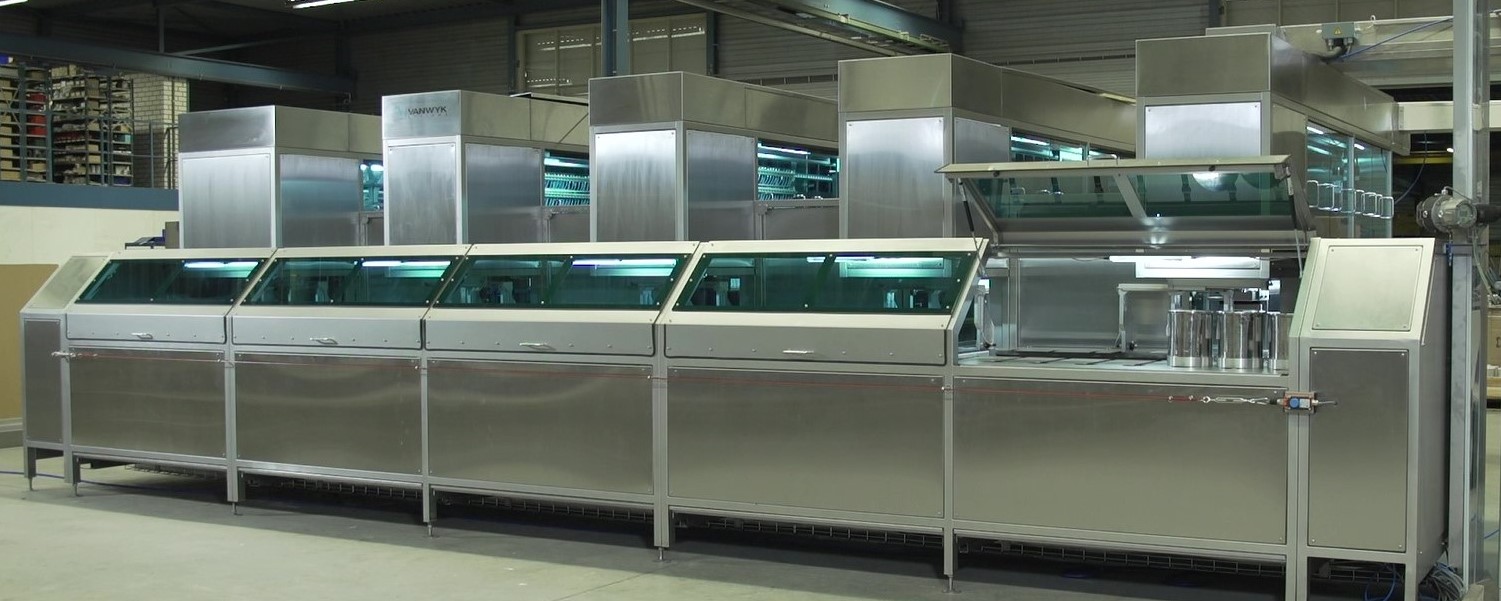

HCSD with 4 liquid units and 1 powder unit
Storage-01
High-Capacity Sample Dispenser Header HCSD Header UCS 20200122_114900 buteressence-01 Dispense pots-01 Potbuffer and transport section-01 HCSD HCSD - 1 head - xx HCSD-01 HCSD with storage HCSD with 4 liquid units and 1 powder unit Storage-01

Download HCSD Brochure

Download Brochure

Send download link to:

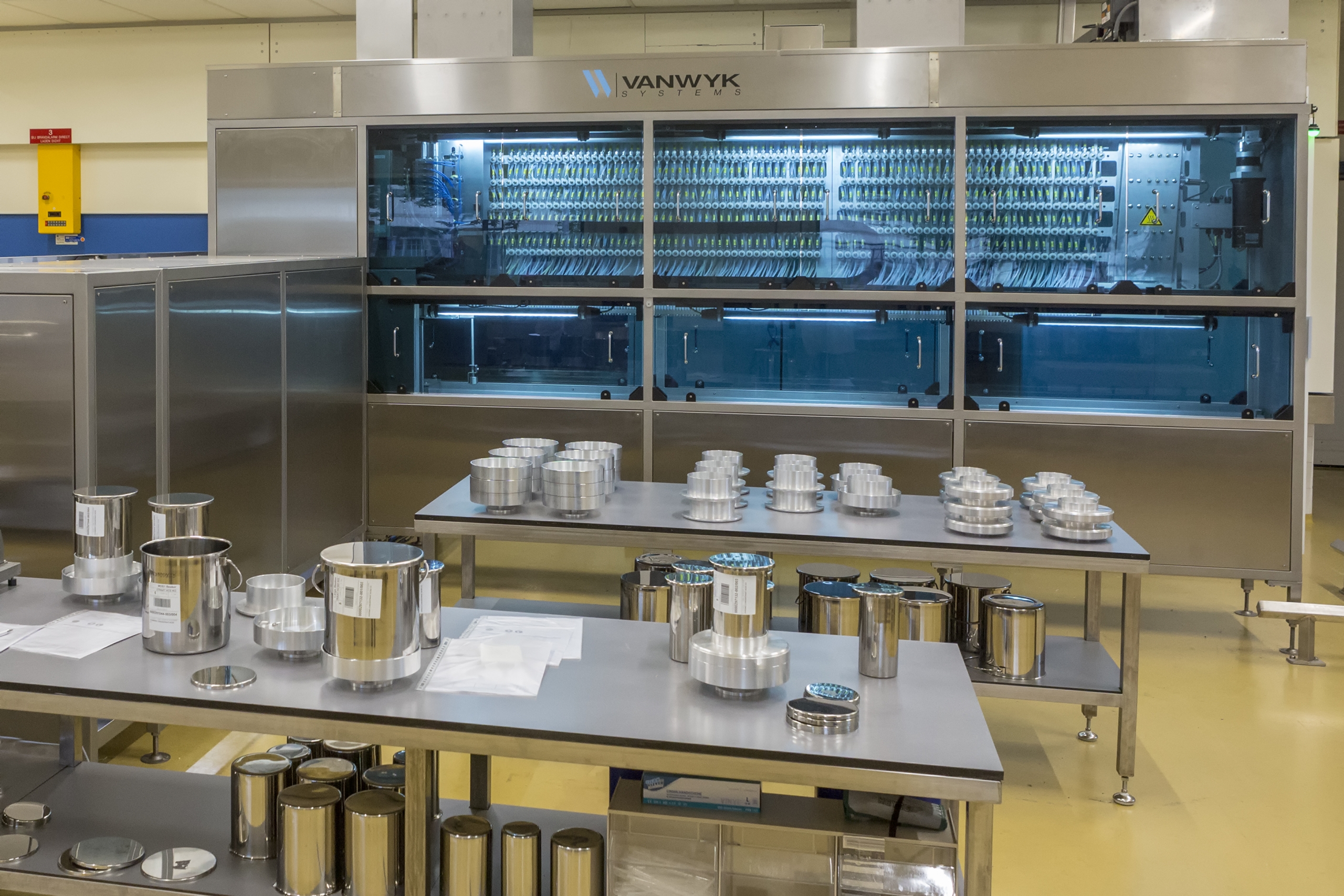

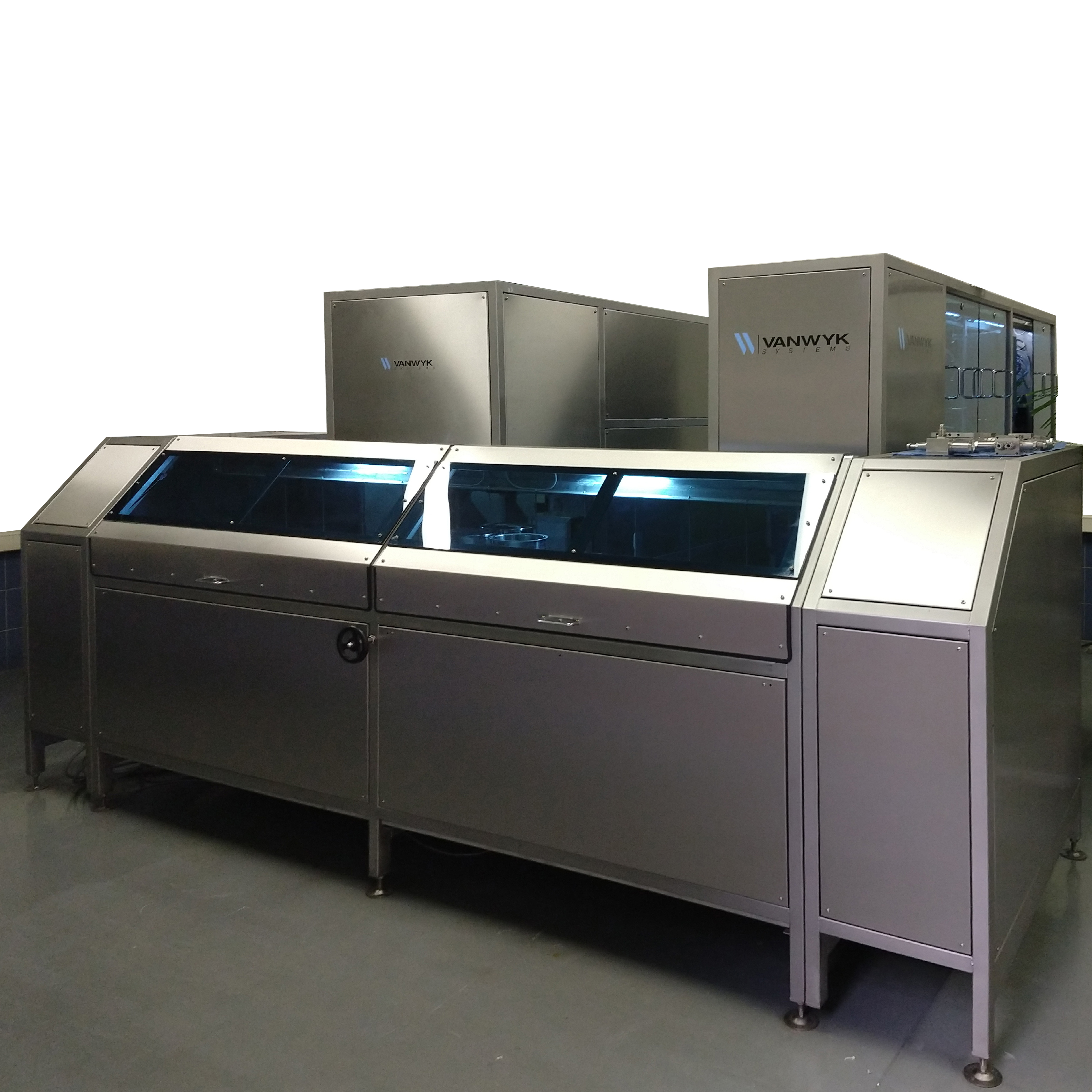

The High-Capacity Sample Dispenser (HCSD) compounds samples for customers / flavourists / perfumers in Flavour and Fragrance companies in a range from 20 grams to 3.5 kg.

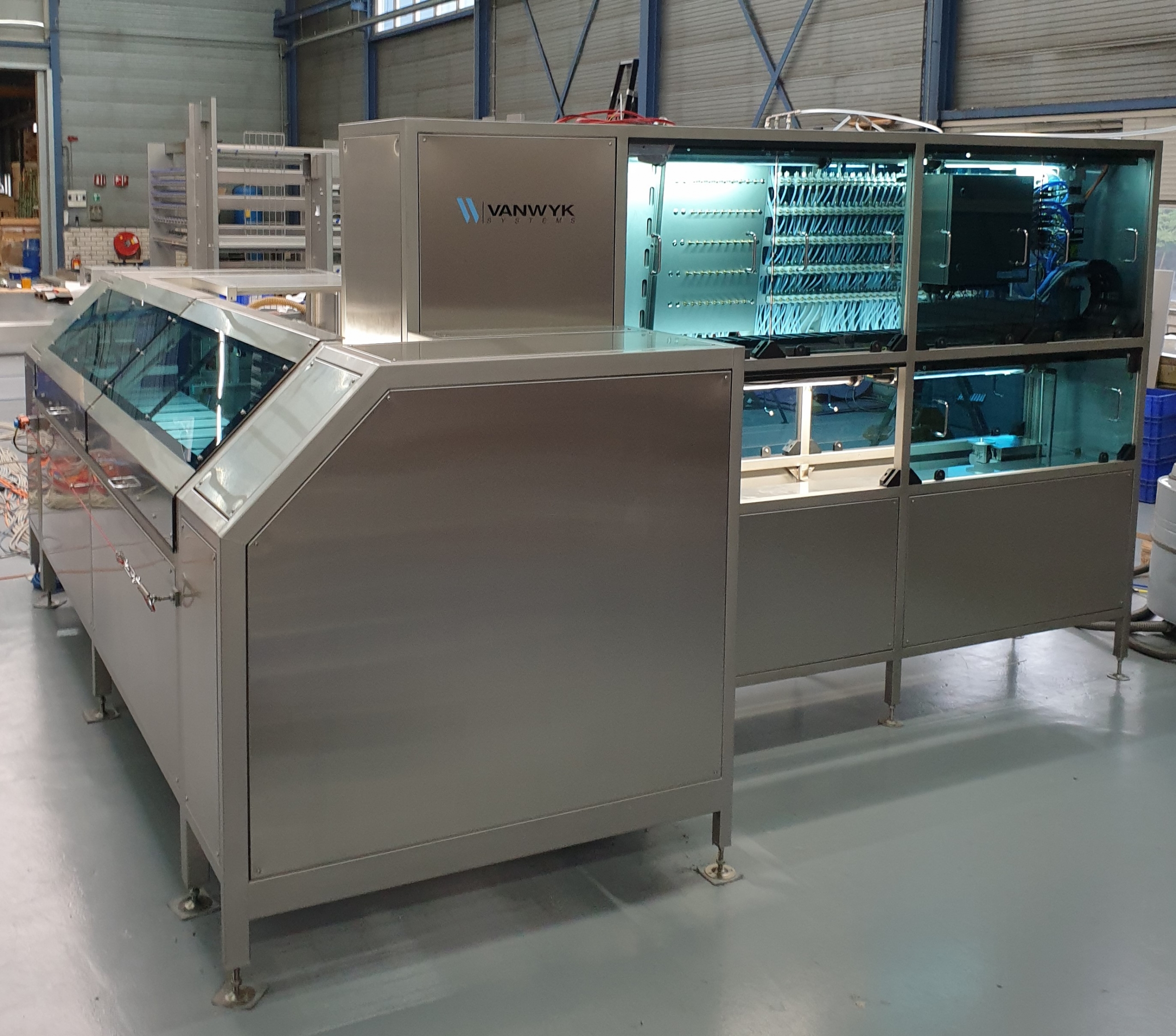

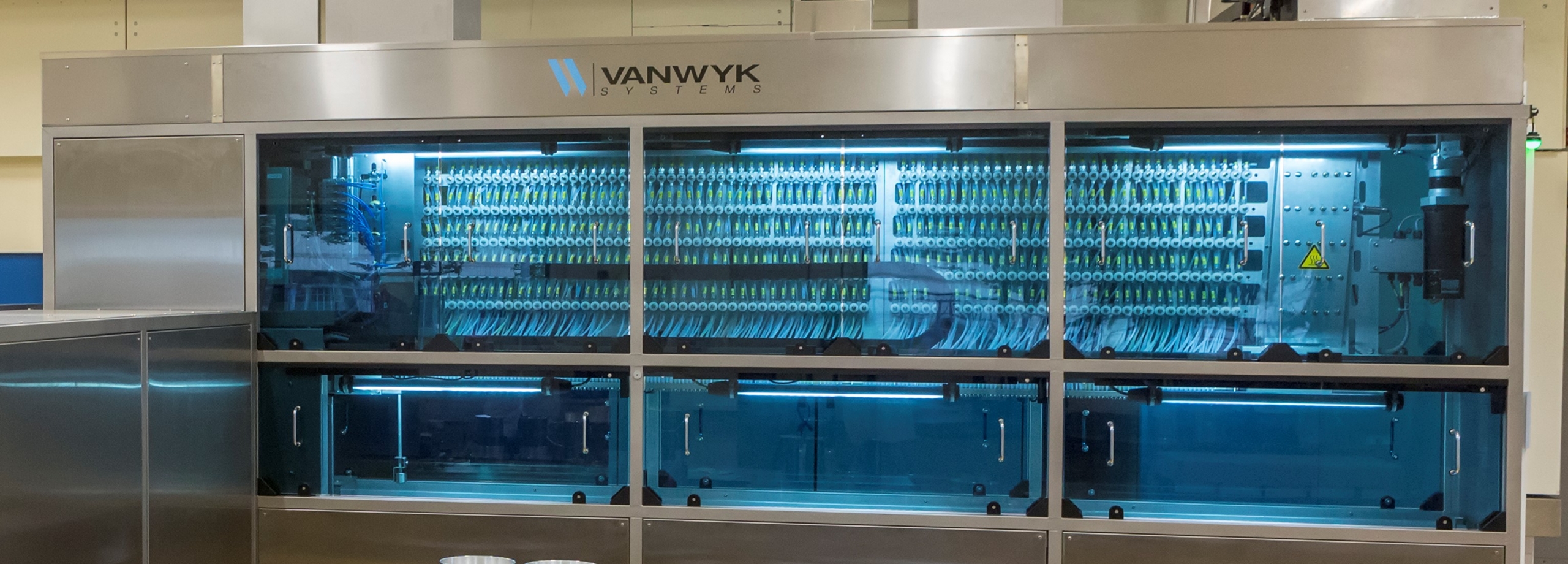

The HCSD has a modular setup ranging from 1 to a maximum of 6 dispense modules. Each module can contain up to 400 components. A transport system for sample pots acts as a combined in- and output buffer for unattended overnight operation.

Features

  • Modular design, easy to expand
  • Easy to operate
  • Low and easy maintenance
  • Barcode identification
  • Integrated dropcatcher to prevent contamination

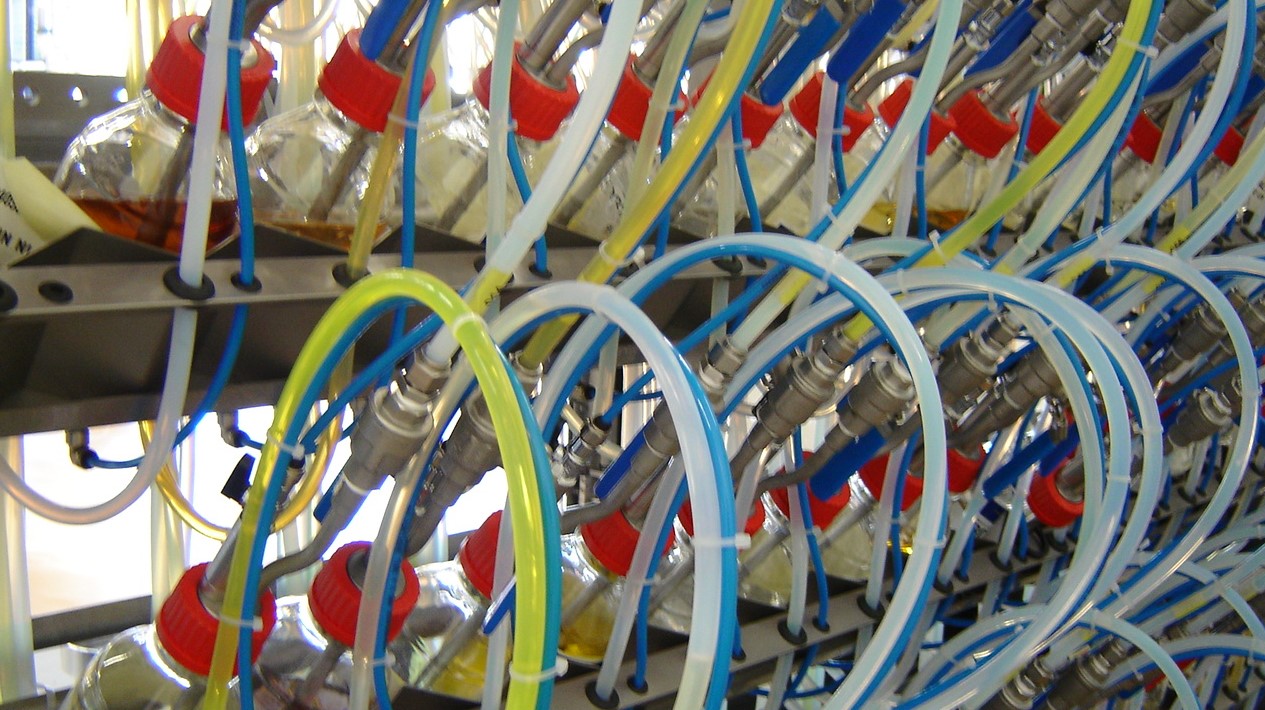

  • Nitrogen pressurized storage
  • Self-learning Camelot dispensing software

Options

  • Available in EX-proof version
  • valveheating or -cooling
  • Integrated lidlifter
  • Stainless steel dispense containers
  • Nitrogen generator
  • Powder dispensing module

Technique

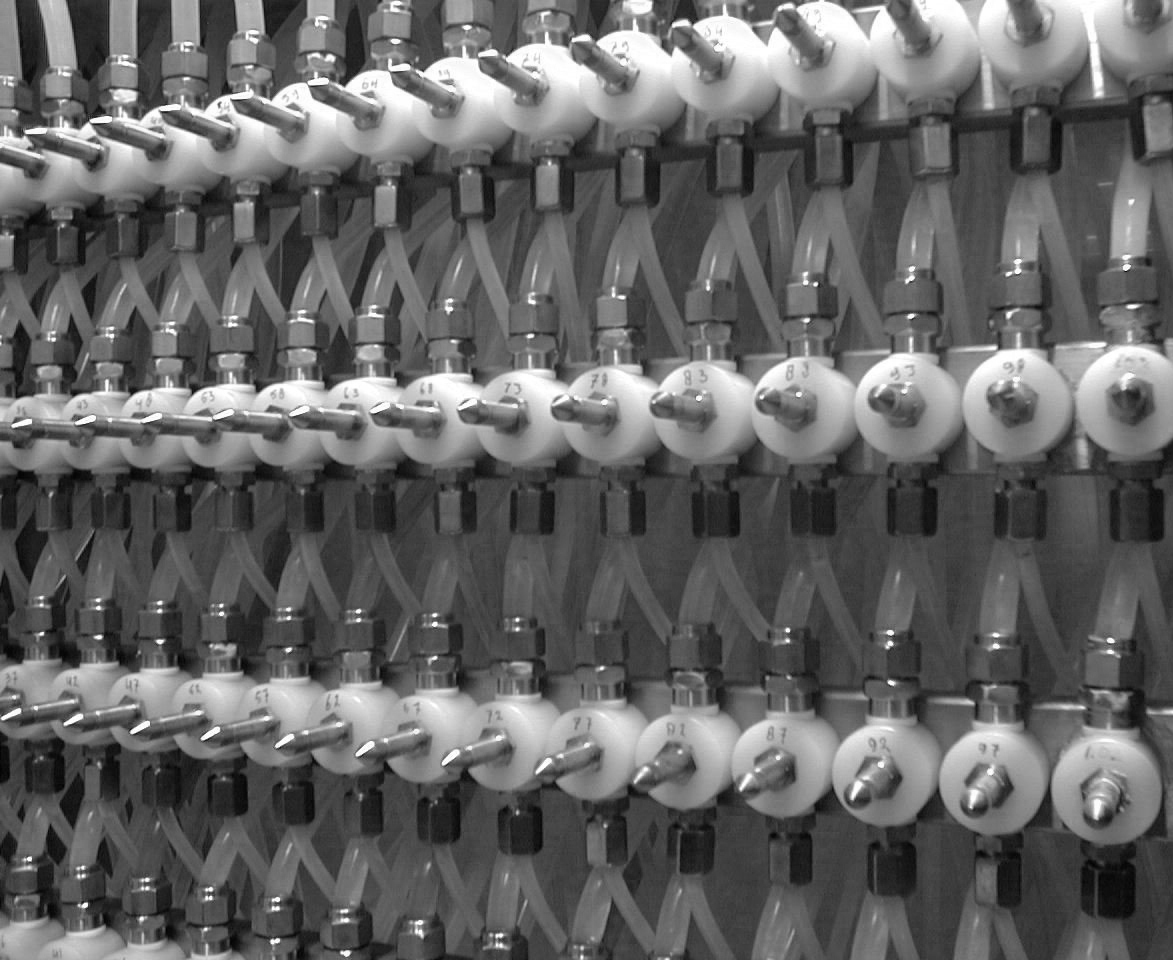

The HCSD uses very small valves that are electro-magnetically opened. This allows for dispenses with very high (milligram) precision.

Versatile

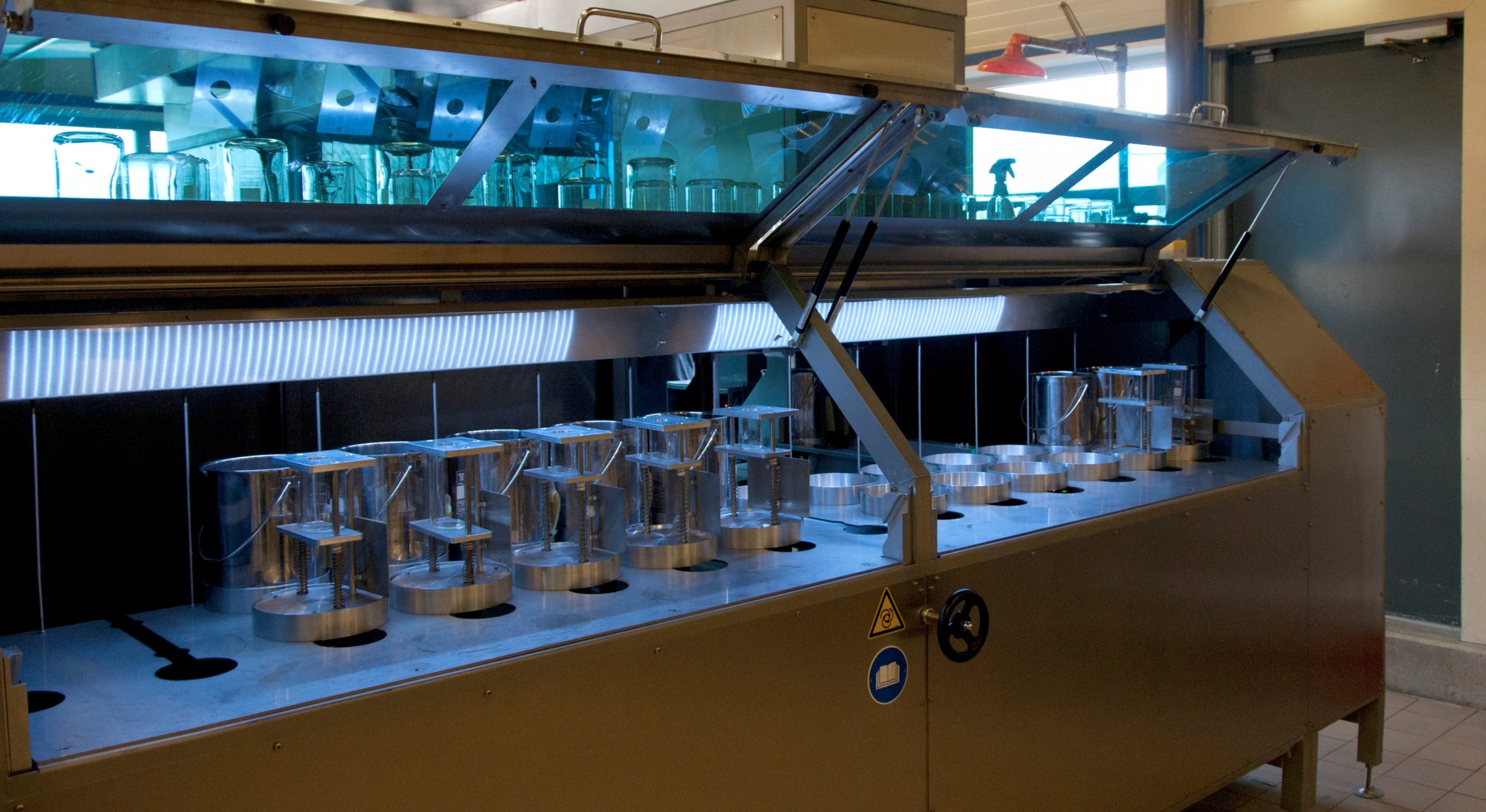

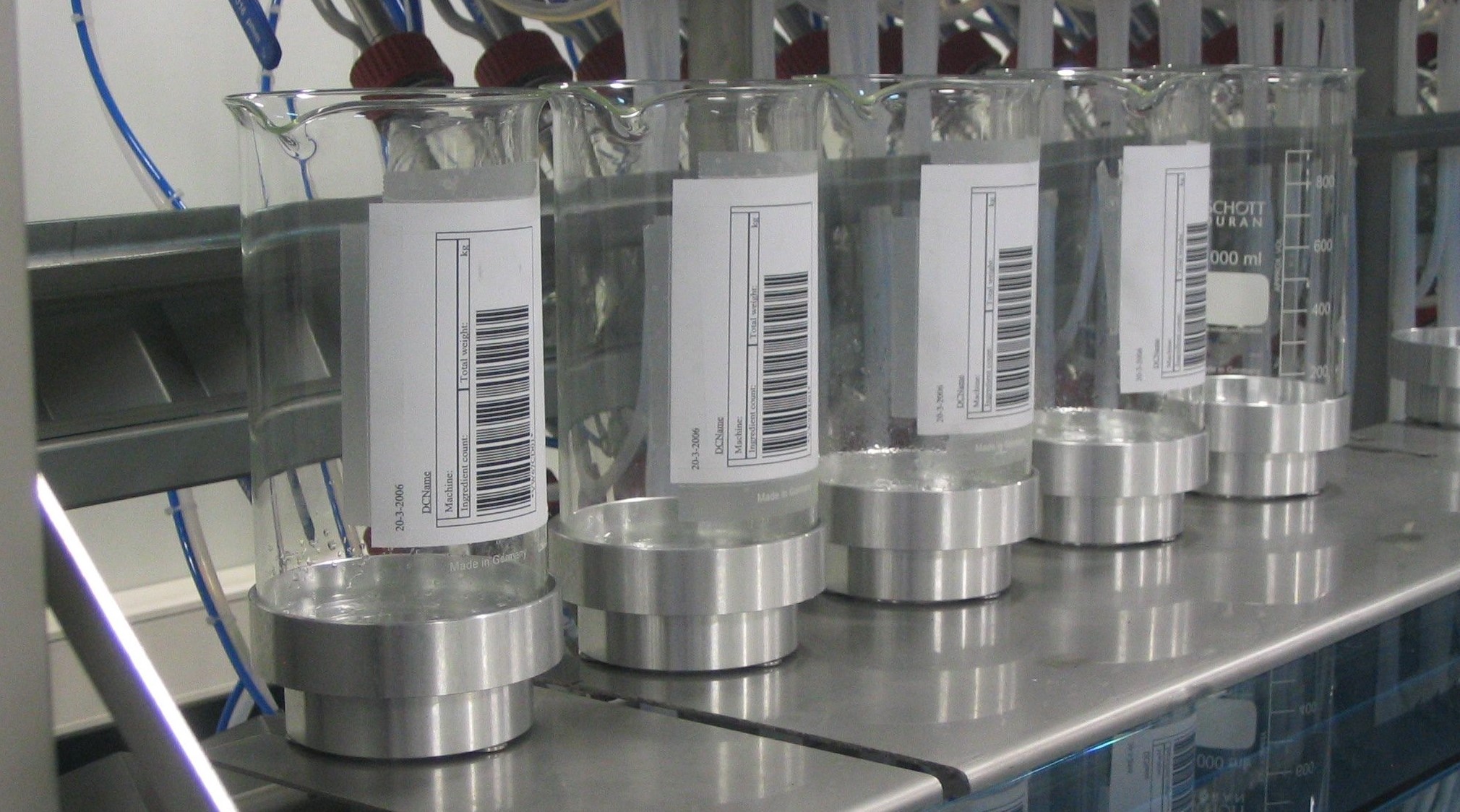

A transport system for the sample pots acts as a combined input- and output buffer, allowing unattended overnight operation for up to 84 large or 162 small pots.

Safe and Clean

Dispensing takes place in an enclosed environment. If the enclosure is opened, dispensing stops immediately.

The HCSD is equipped with drip trays that prevent product from unintentionally reaching the dispense container.

Specifications

Number of valves (raw materials)Up to 2400 (6 modules of 400 valves each)
Dispense valve typeIn-line, with capillary nozzle, 1 or 3 mm
Scale per module6 kg
Batch size2.0 kg (small containers) or 3.5 kg (large containers)
Accuracy3 mg
Dispensing speedUp to 540 pours per hour
Buffer positionsMaximum 84 (large containers) or 162 (small containers)
