Manual Dispense System

Flavours and Fragrances

Barcode traceability

Mobile version available

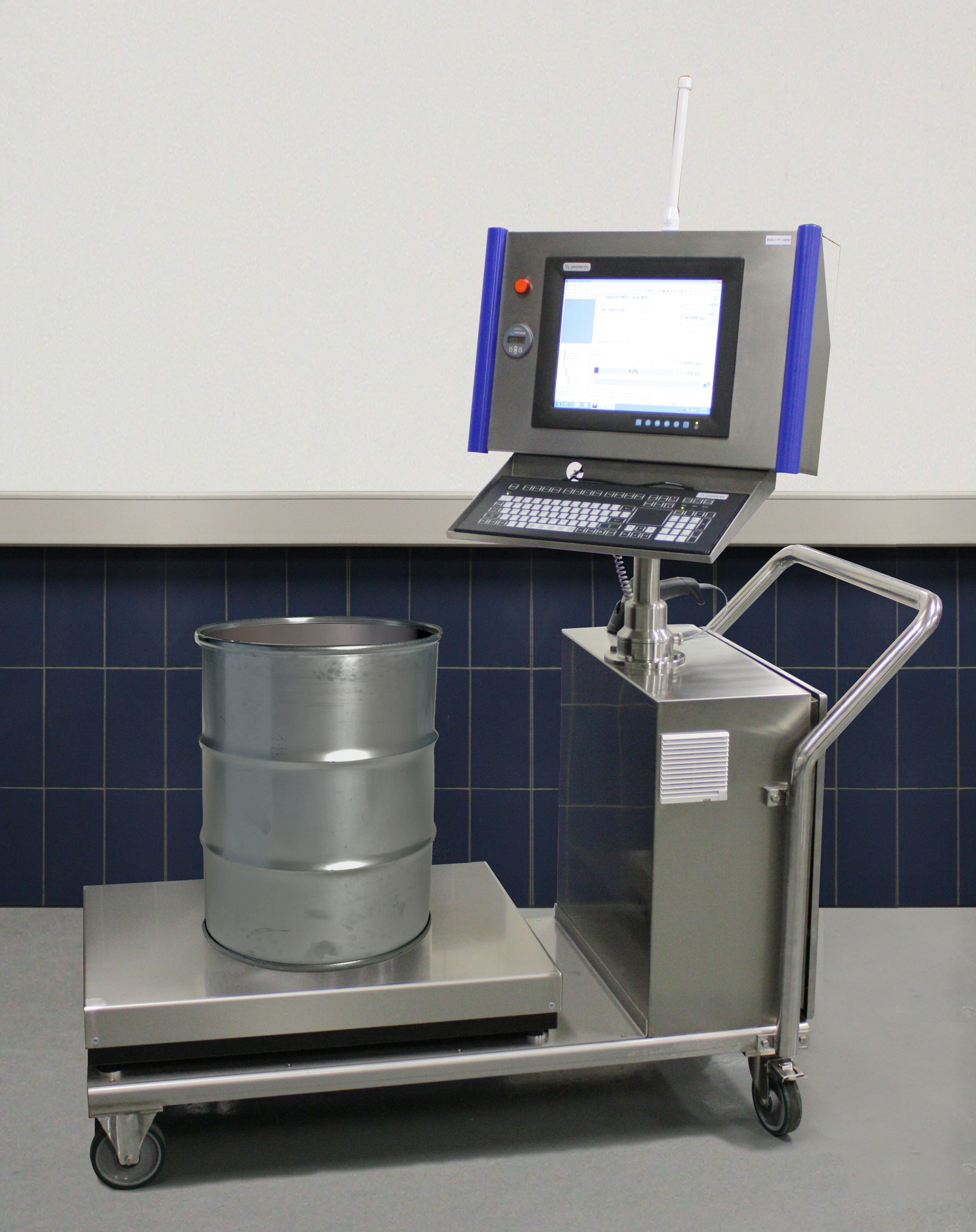

Mobile Manual Dispense System

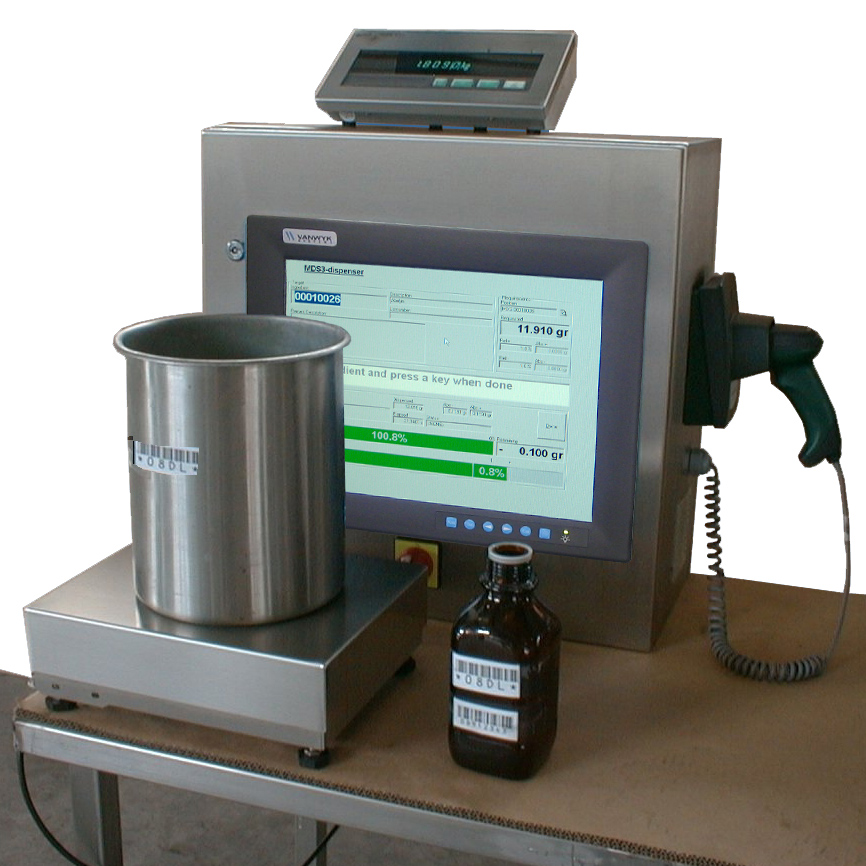

Manual Dispense Station
Manual Dispense Station

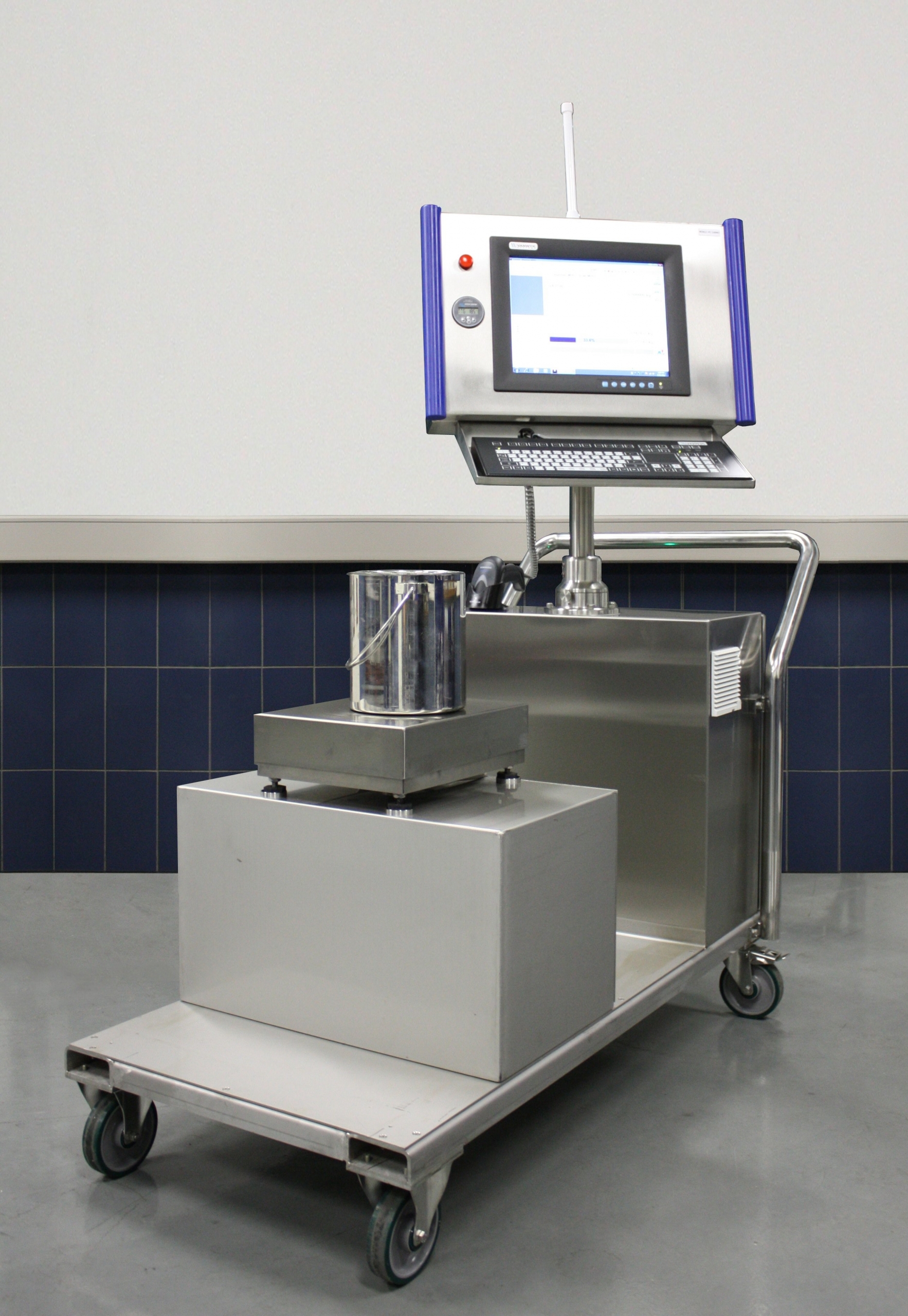

Mobile station-01
Mobile Manual Dispense System Manual Dispense Station Manual Dispense Station Mobile station-01

For the raw materials that are not dispensed automatically we offer a range of Manual Dispense Systems (MDS) with full bar-code control to ensure lot traceability.

The MDS–workstation consists of a PC, a digital scale and a barcode reader. The compounder is guided by the terminal screen concerning the manual weighing of the components. With the barcode reader the compounder checks order numbers, component codes and lot numbers, in order to enable full compounding recording and lot traceability. All results of the manual weighing process (weights, lot numbers, times) are stored on the Camelot server.

MDS is available in three versions: Desktop, Industrial and Mobile

Options

  • Barcodescanner
  • Multiple scale support
  • Stationary: Atex zone 1 compliant
  • Mobile: Atex zone 2 compliant

Technique

The MDS consists of a PC, a scale and a barcodescanner. The operator manually weighs on the scale until the software approves the weighing.

Easy operation

The Camelot software on an industrial PC allows for an easy operation. The PC is keyboard and mouse controlled and can be equipped with a barcodereader for error-free input.

Quality

With the barcode reader the compounder checks order numbers, component codes and lot numbers, in order to enable full compounding recording and lot traceability.
