SUSTAINABLE
EASY TO OPERATE & MAINTAIN
SMALL & MODULAR
Download MAX brochure
Send download link to:

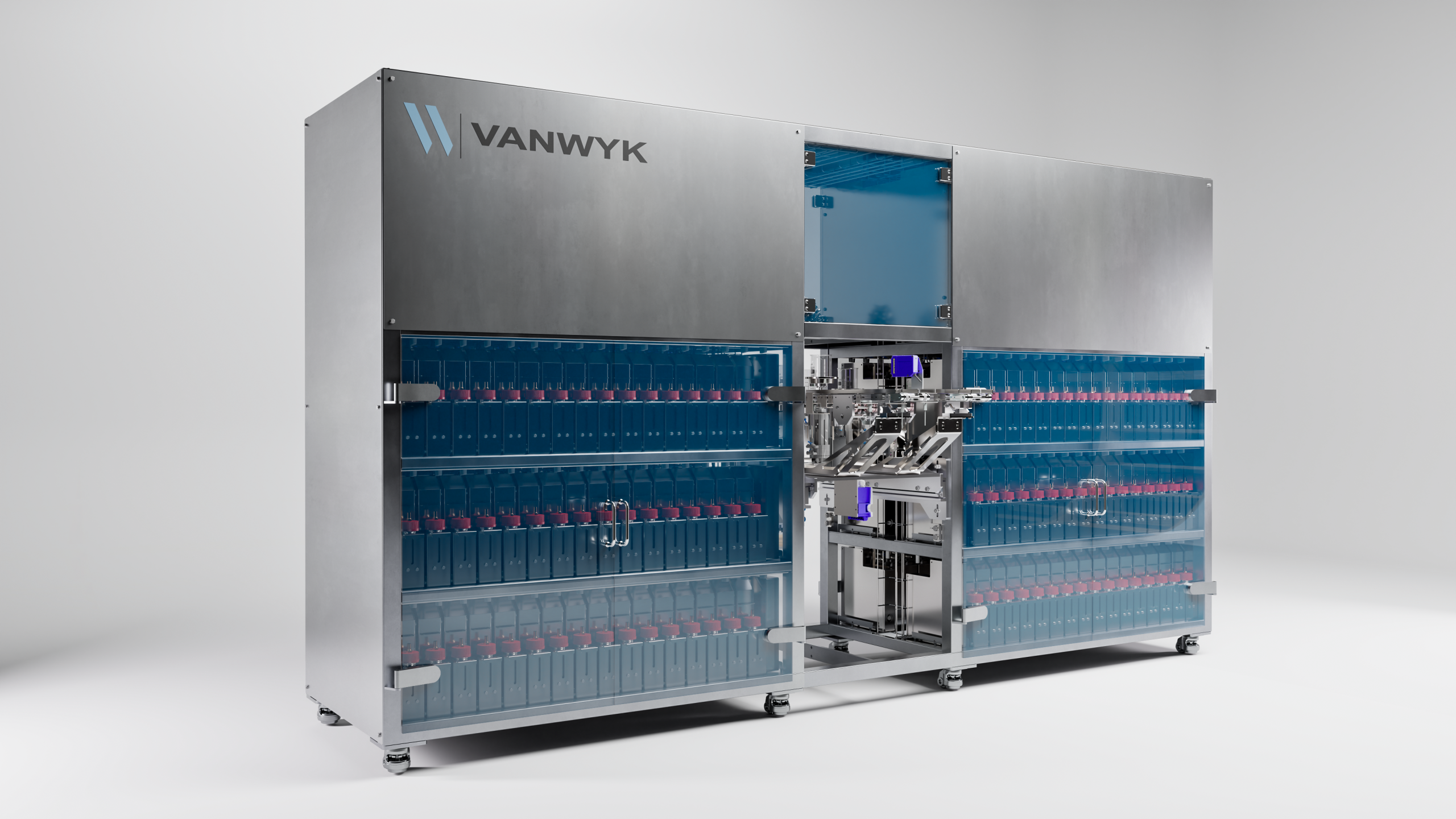

The MAX: unique technology that delivers fast, reliable volumetric sampling that is as easy to use as it is to maintain
Say no to time-consuming and expensive calibration and maintenance routines, ingredient incompatibility, and increased manual pours and personnel costs.
The MAX sets a new benchmark in volumetric dispensing:
Speed
Ingredients dispensed simultaneously at 30g/min, without compromising on the number of connected ingredients or increased manual pours.
Sustainable
An operational methodology that does not require constant recalibration or expensive and time-consuming maintenance schedules.
Accurate
I% accuracy on dispenses above 0.5g; also on smaller quantities, subject to viscosity.
Easy
Plug-and-play. Automatic calibration and uncomplicated operation by any operator. Ingredients are stored in containers on the unit that can be easily exchanged, together with the dispense hardware.
Compact
3.3m x 0.8m x 1.8m; the MAX can pass through standard doors.
Modular
Several units can be combined and linked by a transport system adapted to your needs.

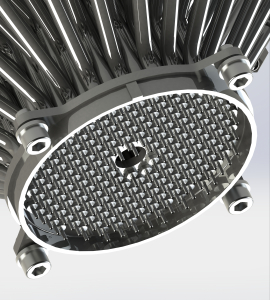

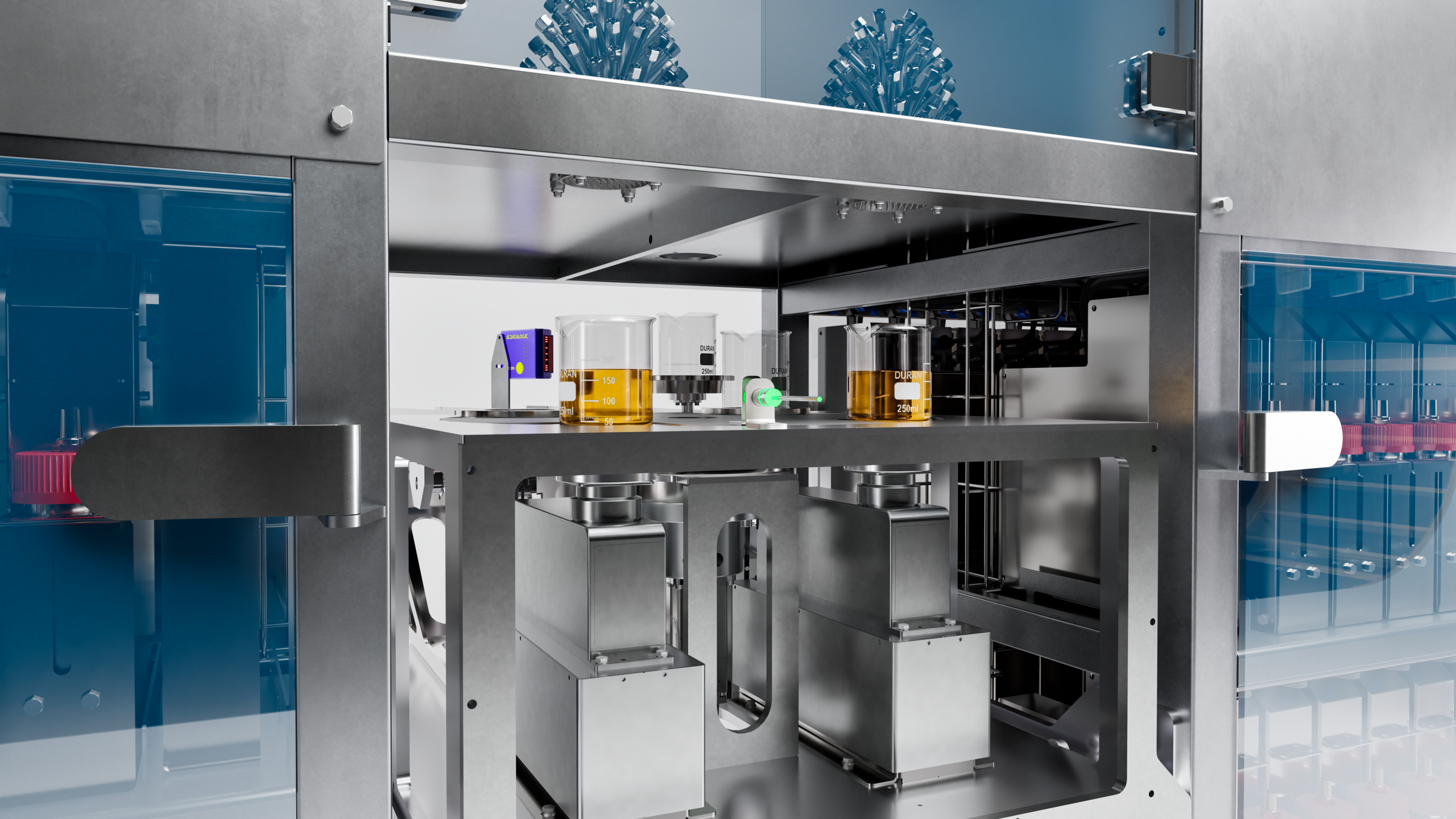

- The transport system takes dispense pots through the MAX under two dispense heads – each connected to 96 ingredients. Ingredients are dispensed simultaneously; batch dosing time is determined by the ingredient with the largest volume in the recipe.
- Dispense pot size 250ml as standard, max batch size 200ml. With adjustment, the MAX can work with 600ml pots, max batch size 500ml.

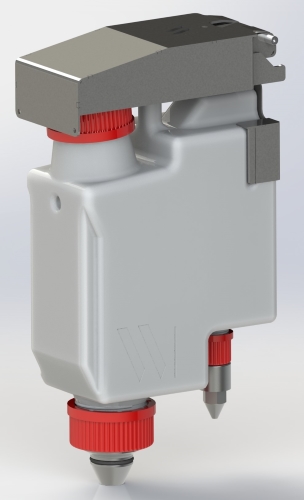

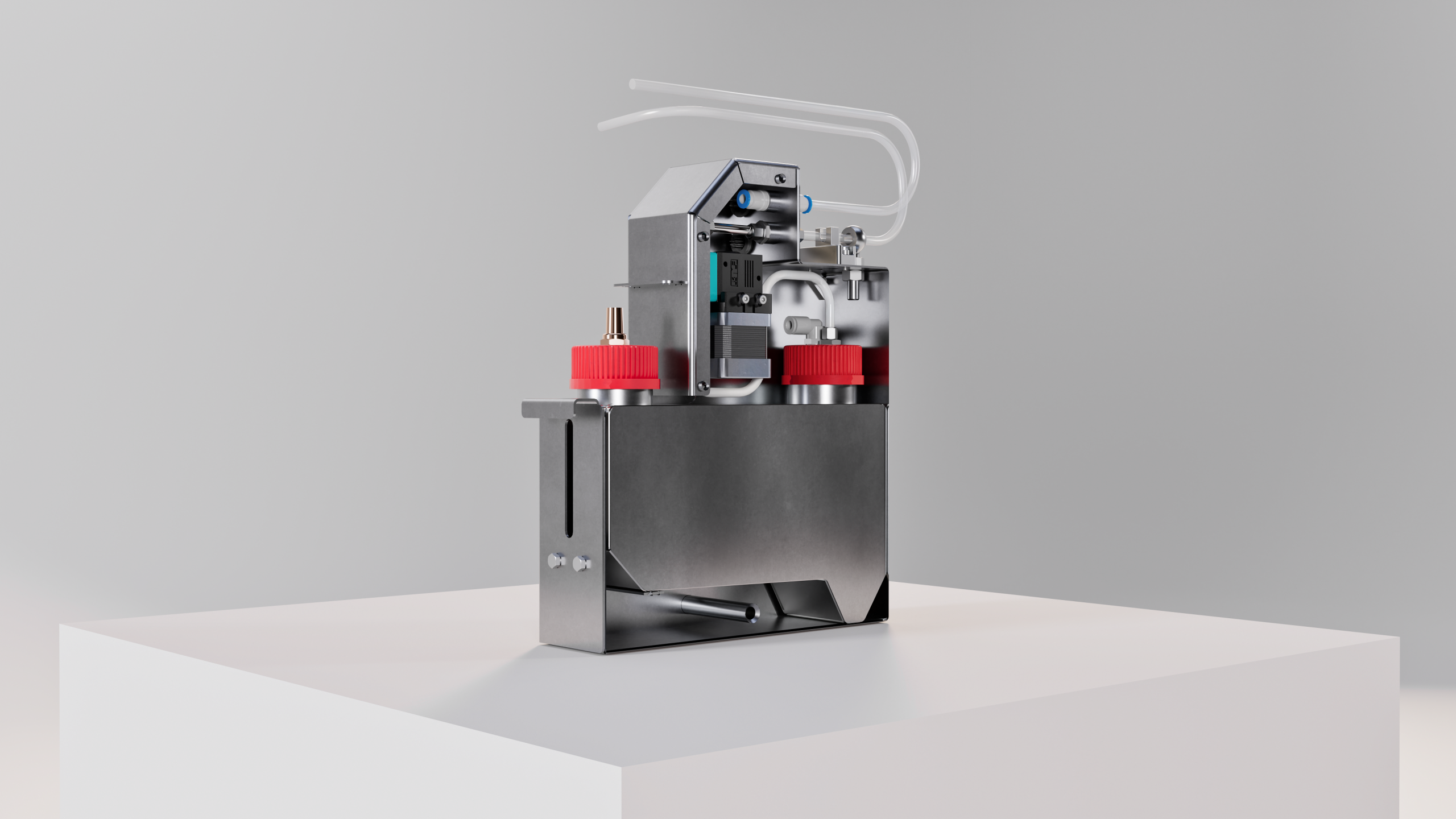

- Up to 192 ingredients are stored in PVDF storage tanks on the unit; all hoses in the machine are also made of airtight PVDF.
- For calibration and high-speed gravimetric operation, two scales are included (max. 6 kg; accurate to 1mg). Automatic calibration as standard.
- Vanwyk’s Camelot software package controls the MAX and manages recipe-creation and dispensing; the MAX can be incorporated into the sampling and production output of other Vanwyk machines.
